Indicative Price Range
₹899–₹5.5Kper filter
Pleated panel filter G3–G4; cardboard / metal frame
Prices vary by turbine model, OEM spec, material grade, and order quantity. The range shown reflects our typical market spread — contact us for a firm quotation.

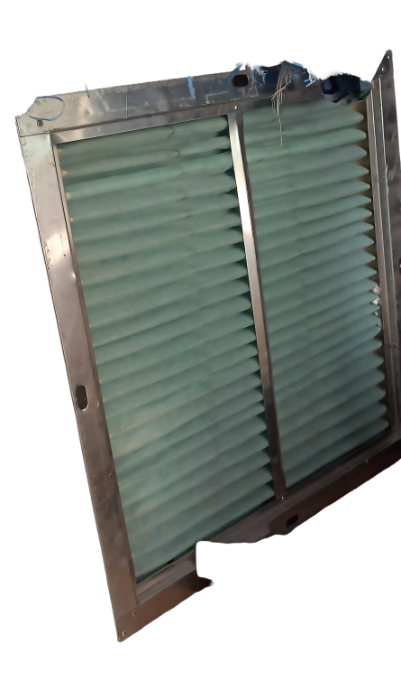

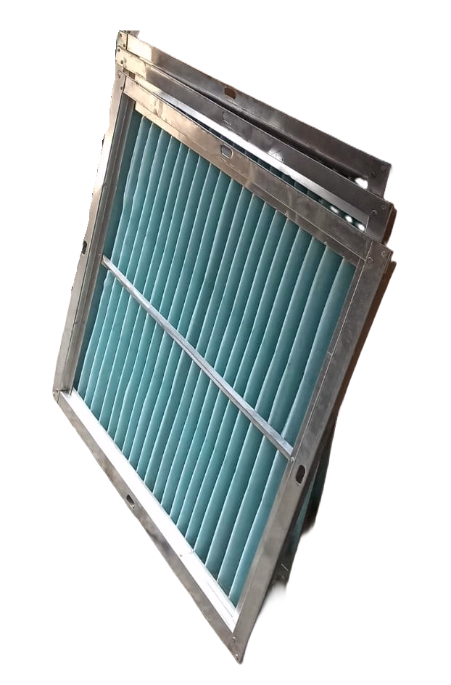

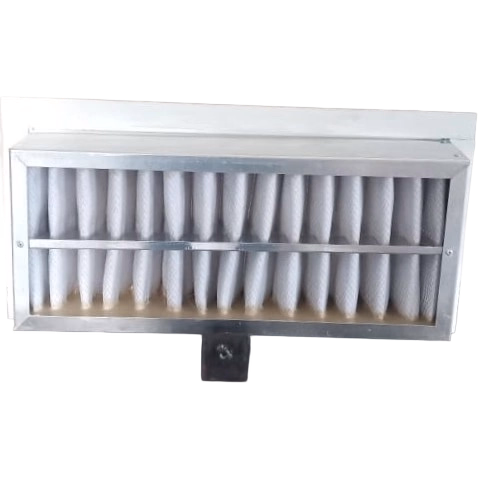

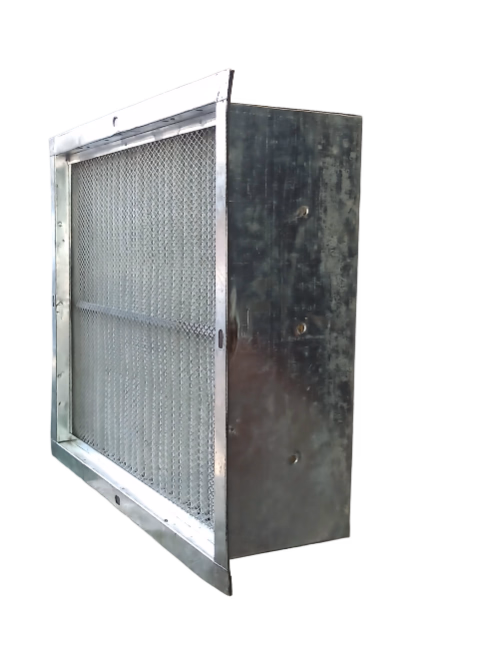

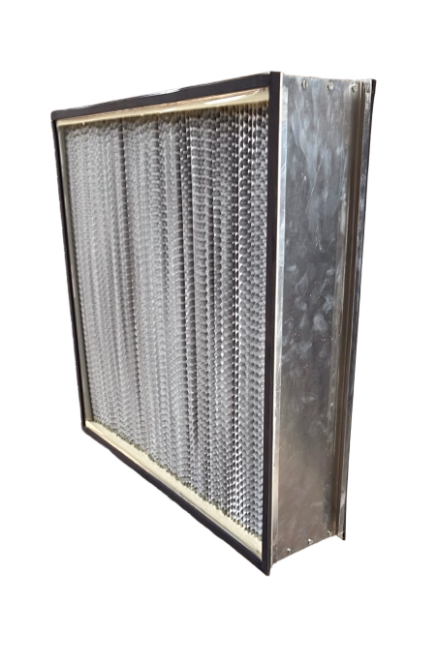

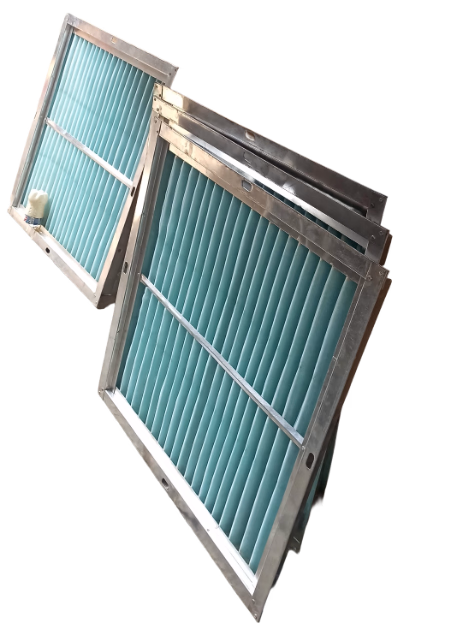

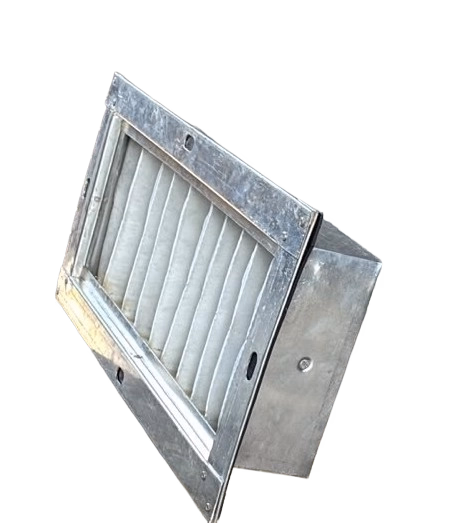

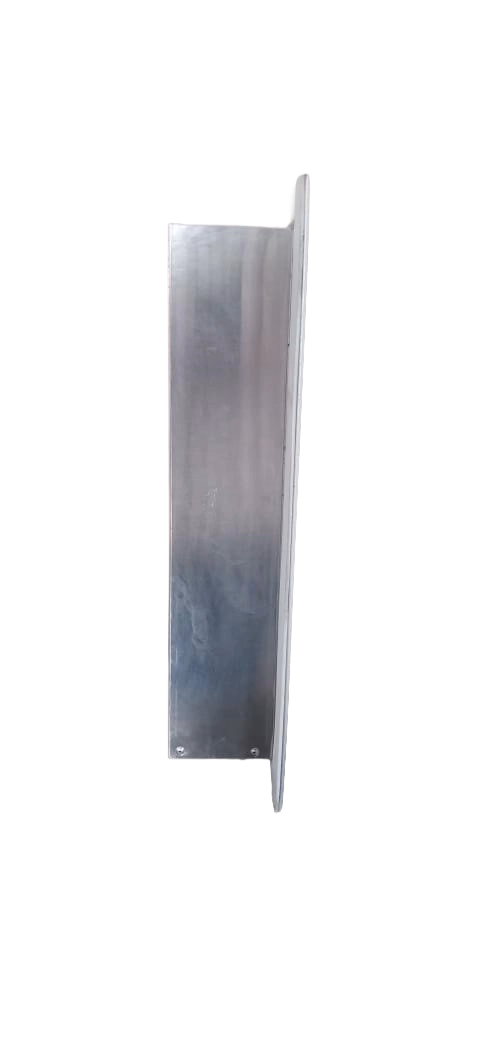

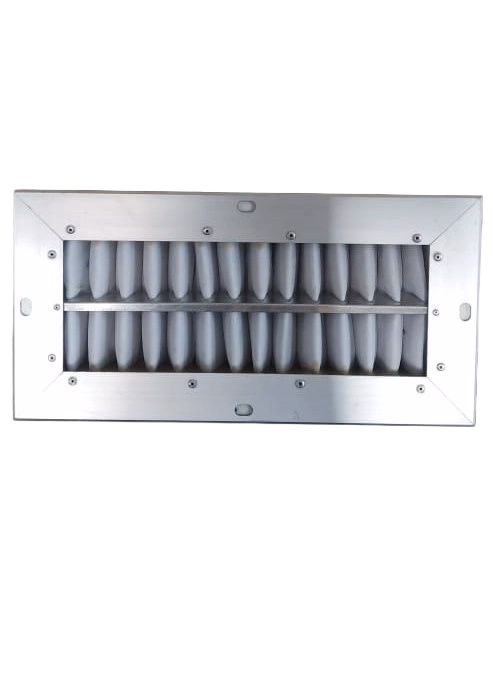

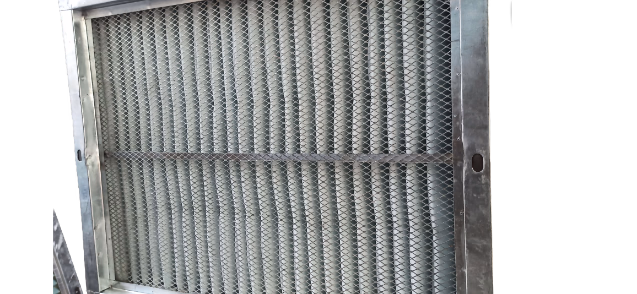

Pleated panel air filters in rigid frames for HVAC air handling units, fan coil units, split-AC indoor units, and light industrial ventilation. The accordion-pleated synthetic or glass fibre media provides up to 4× the effective filtration area of an equivalent flat-panel filter, delivering lower initial resistance, higher dust-holding capacity, and longer service life. Available across efficiency grades G4 to F9 per EN 779 and ePM1 / ePM2.5 / ePM10 classifications per ISO 16890. Supplied in standard and custom frame sizes for both residential and commercial HVAC applications.
Primary and intermediate air filtration stage in commercial HVAC air handling units (AHUs), fan coil units (FCUs), rooftop package units, split AC indoor units, hospital ward air supply, pharmaceutical facility HVAC, clean room make-up air systems, and light industrial process ventilation. Protects cooling coils, ductwork, and occupied spaces from dust accumulation. Used as a standalone single-stage filter in low-to-moderate contamination environments and as a pre-filter upstream of bag filter or HEPA stages in high-efficiency systems.
| Frame Depths | 25 / 48 / 96 / 150 / 292 mm |
|---|---|
| Standard Frame Sizes | 287×592 mm; 490×490 mm; 490×592 mm; 592×592 mm (custom available) |
| Frame Materials | Galvanised steel / Powder-coated steel / Polypropylene |
| Pleat Support | Internal wire grid or corrugated glue beads |
| Est. Price | ₹899 – ₹5.5KIndicative estimate · contact for firm quote |
| Lead Time | Standard grades: ex-stock to 1 week; custom sizes/special media: 2–4 weeks |
Price & Lead Time shown on every tab
Scoped to this part for a fast reply. For general inquiries, use our Contact page instead.
PDF, DWG, DXF, JPG, PNG — max 10 MB per file. Helps us quote faster.
We respond within 1 business day · No spam · Privacy Policy
Need installation or maintenance?
Our field engineers supply, install, and commission everything we sell.
View engineering servicesPrecision-engineered industrial damper for regulating or controlling airflow, gas flow, and flue gas within industrial duct and HVAC systems. Available in manual and motorized actuator configurations for energy-efficient flow management.
Application: Industrial chimneys, boiler flue gas ducts, HVAC ventilation systems, process air handling units, and industrial exhaust systems requiring controlled airflow regulation.
Custom-fabricated mild steel and stainless steel duct systems for industrial air, gas, and fume conveyance. MS ducts deliver cost-effective strength for standard environments while SS ducts provide superior corrosion resistance for aggressive and hygienic applications.
Application: Industrial ventilation systems, fume extraction, exhaust air handling, chemical plant gas conveyance, food and pharmaceutical manufacturing, and boiler or furnace gas duct connections.
High-efficiency multi-pocket bag filters for HVAC air handling units, central air conditioning, and industrial ventilation systems. The extended pleated pocket geometry maximises filtration surface area in a compact frame, delivering low resistance at rated airflow while achieving superior dust-holding capacity and service life. Available in synthetic, glass fibre, and micro-glass media across efficiency classes F5 to F9 per EN 779 / ISO 16890.
Application: Intermediate and final-stage air filtration in HVAC air handling units (AHUs), central air conditioning plants, clean rooms, hospitals, pharmaceutical facilities, data centres, commercial buildings, food processing areas, and industrial ventilation systems. Installed downstream of coarse pre-filters to capture fine dust, pollen, mould spores, and sub-micron particulates before supply air enters occupied spaces or sensitive equipment.
