HVAC, Ducting & Air FiltrationEx-Stock

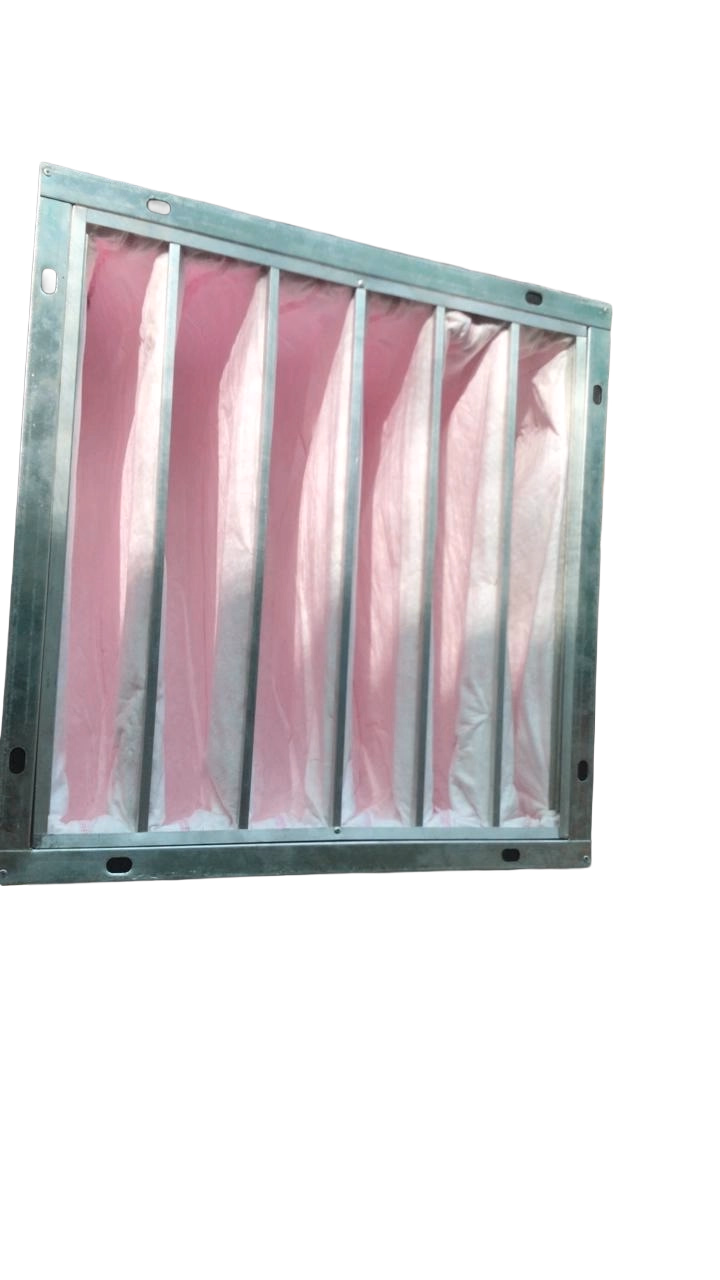

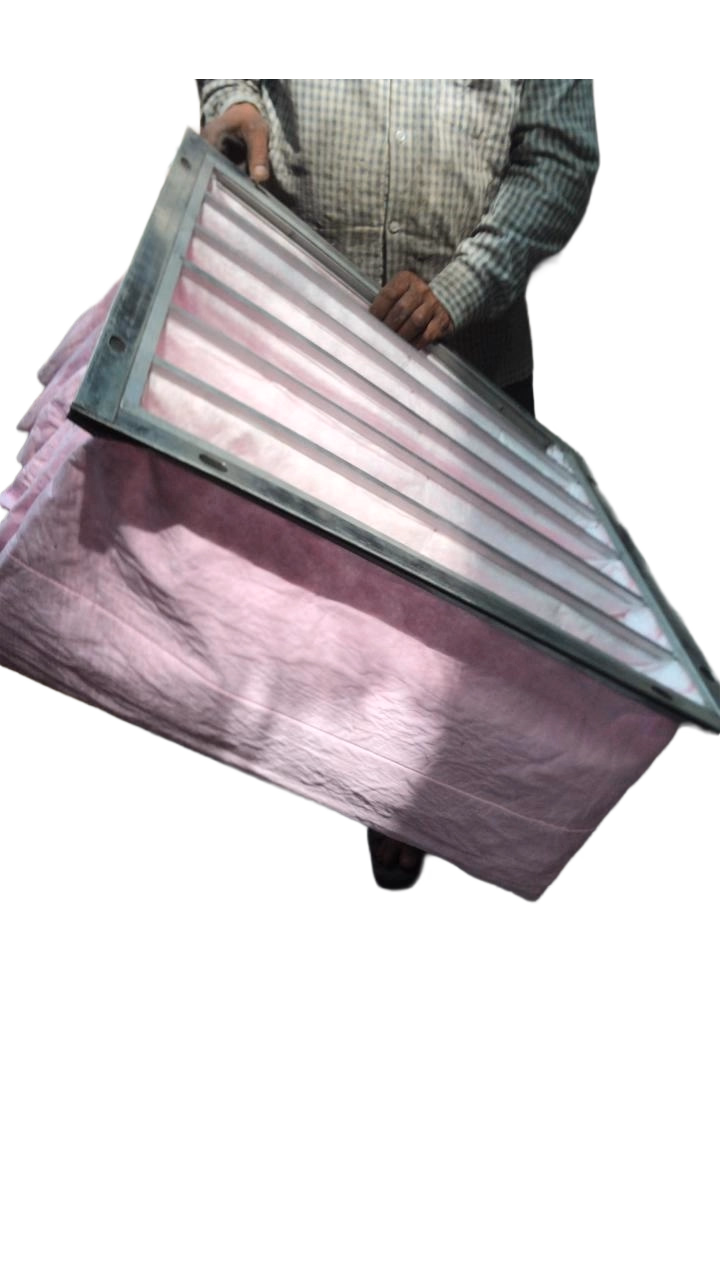

HVAC Pocket Bag Filter (Multi-Pocket Air Filter)

Indicative Price Range

₹1.2K–₹8.5Kper filter

Multi-pocket bag F5–F9; synthetic / micro-glass media

Get Quote

Prices vary by filter class, size, media, and order quantity. The range shown reflects our typical market spread — contact us for a firm quotation.

High-efficiency multi-pocket bag filters for HVAC air handling units, central air conditioning, and industrial ventilation systems. The extended pleated pocket geometry maximises filtration surface area in a compact frame, delivering low resistance at rated airflow while achieving superior dust-holding capacity and service life. Available in synthetic, glass fibre, and micro-glass media across efficiency classes F5 to F9 per EN 779 / ISO 16890.

Primary Industrial Application

Intermediate and final-stage air filtration in HVAC air handling units (AHUs), central air conditioning plants, clean rooms, hospitals, pharmaceutical facilities, data centres, commercial buildings, food processing areas, and industrial ventilation systems. Installed downstream of coarse pre-filters to capture fine dust, pollen, mould spores, and sub-micron particulates before supply air enters occupied spaces or sensitive equipment.

Standard Frame Sizes287×592×600 mm; 490×592×600 mm; 592×592×600 mm (custom available)
Pocket Count4 / 6 / 8 / 10 pockets per frame
Frame MaterialsGalvanised steel / Powder-coated steel / Polypropylene
Est. Price₹1.2K – ₹8.5KIndicative estimate · contact for firm quote
Lead TimeStandard grades: ex-stock to 1 week; custom sizes/special media: 2–4 weeks

Price & Lead Time shown on every tab

Request Quote via WhatsApp

Scoped to this part for a fast reply. For general inquiries, use our Contact page instead.

PDF, DWG, DXF, JPG, PNG — max 10 MB per file. Helps us quote faster.

We respond within 1 business day · No spam · Privacy Policy

Need installation or maintenance?

Our field engineers supply, install, and commission everything we sell.

View engineering services

Technical details we need to quote

  • Equipment make and model, or the part number you currently use
  • A drawing or a clear photo of the part or its nameplate
  • Quantity required

Send these on the contact form or by WhatsApp.

You May Also Need

Industrial Airflow Damper

Precision-engineered industrial damper for regulating or controlling airflow, gas flow, and flue gas within industrial duct and HVAC systems. Available in manual and motorized actuator configurations for energy-efficient flow management.

Application: Industrial chimneys, boiler flue gas ducts, HVAC ventilation systems, process air handling units, and industrial exhaust systems requiring controlled airflow regulation.

₹10K – ₹80Kper pieceIndicative price: contact for firm quote

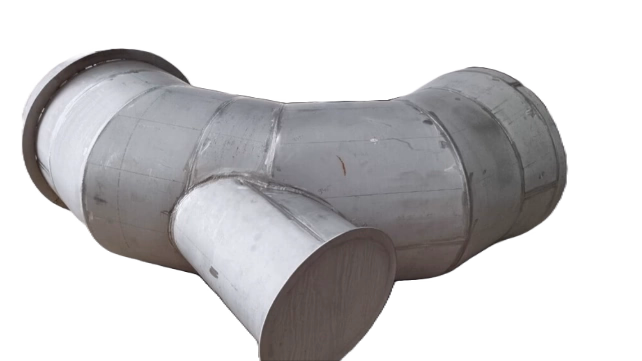

MS & SS Industrial Duct Systems

Custom-fabricated mild steel and stainless steel duct systems for industrial air, gas, and fume conveyance. MS ducts deliver cost-effective strength for standard environments while SS ducts provide superior corrosion resistance for aggressive and hygienic applications.

Application: Industrial ventilation systems, fume extraction, exhaust air handling, chemical plant gas conveyance, food and pharmaceutical manufacturing, and boiler or furnace gas duct connections.

₹3.5K – ₹25Kper pieceIndicative price: contact for firm quote

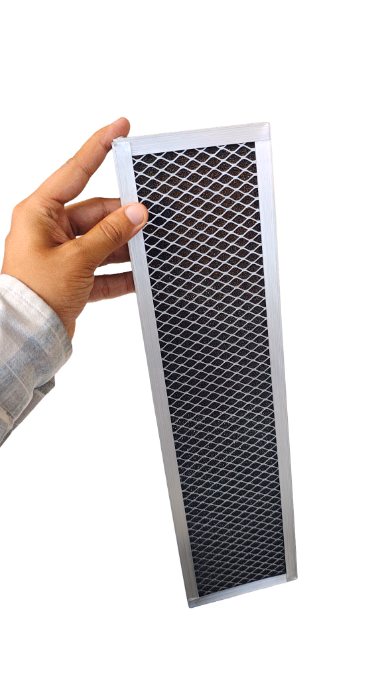

Activated Carbon Vent Filter: Recirculating Air

Activated carbon charcoal air filters for microwave ovens, range hoods, kitchen exhaust ventilation, and general recirculating air purification. The activated carbon granule or carbon-impregnated foam media adsorbs cooking odours, grease vapour, VOCs, and airborne chemical contaminants. Supplied as direct-fit OEM-compatible replacement cartridges or universal panels to fit standard appliance filter housings. For industrial and commercial applications: activated carbon panel and granule-bed vent filters for odour control in HVAC recirculating loops, fume cupboards, and solvent-vapour extraction systems.

Application: Domestic: Microwave oven recirculating air filter replacement; range hood charcoal filter; kitchen exhaust vent filter where ducting to exterior is not available, recirculating air passes through activated carbon to remove cooking odours and VOCs before return to kitchen. Commercial/Industrial: Activated carbon vent filters for HVAC recirculating systems, fume cupboard odour control, laboratory air purification, solvent storage room ventilation, and printing/painting shop odour management.

₹2.5K – ₹12Kper filterIndicative price: contact for firm quote
