Turbine SparesMade to Order

Steam Turbine Overspeed Trip Device & Speed Switch

Indicative Price Range

₹12K–₹95Kper unit

Mechanical & electro-hydraulic trip; API 670 class

Get Quote

Prices vary by turbine model, OEM spec, material grade, and order quantity. The range shown reflects our typical market spread — contact us for a firm quotation.

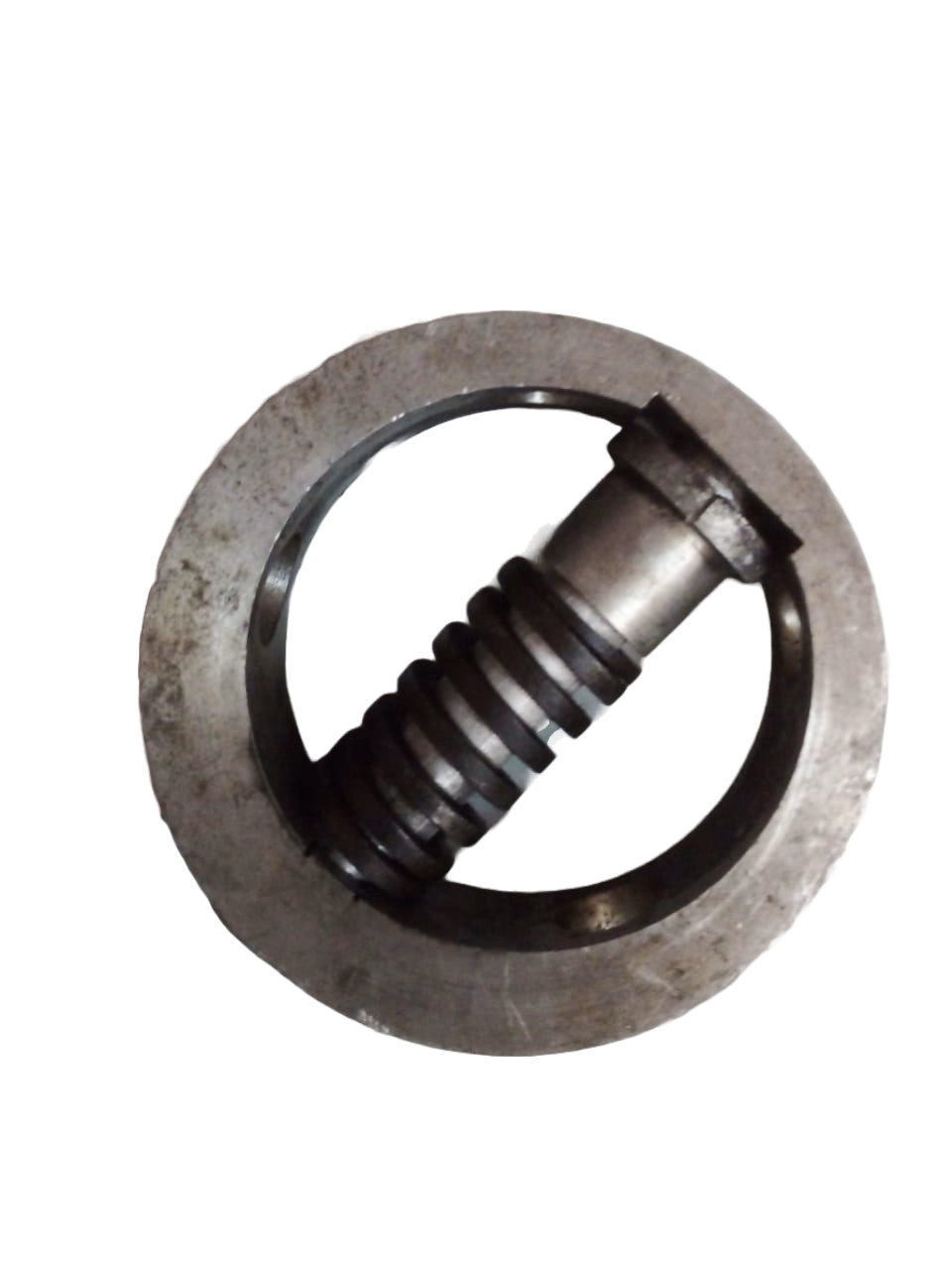

Overspeed trip devices and speed switches for steam turbine protection against catastrophic runaway. Mechanical overspeed trip assemblies use a centrifugal unbalanced plunger or eccentric pin mounted in the turbine shaft: when shaft speed exceeds the trip threshold (typically 110–112% of rated speed), centrifugal force overcomes the pre-set spring force, the plunger protrudes and strikes a trip lever, dumping the hydraulic trip oil header and closing the Emergency Stop Valve (ESV) instantly. Electronic overspeed trip units use magnetic pickup sensors (MPUs) and a speed monitoring relay to provide independent, SIL-rated trip output. Supplied as OEM-matched replacement assemblies or as upgraded electronic trip units for older mechanically governed turbines.

Primary Industrial Application

Mandatory safety device on every steam turbine: protects against destruction of blades, casing, and coupled driven equipment (generator, compressor, pump) when the speed governor fails to control speed after a load trip. Critical during turbine overhauls: overspeed trip plunger springs, bushings, and adjustment assemblies require inspection, dimensional checking, and replacement at every major overhaul. Also required for operational testing, annual or per-shutdown overspeed trip test by controlled speed raise to trip setpoint. Keshav Enterprises supplies: mechanical trip plunger assemblies (complete with spring, bushing, and adjustment nut), electronic speed relays (Woodward ProTech-compatible), magnetic pickup sensors (MPUs) for speed signal input, and trip oil dump valves for hydraulic trip circuits.

Mechanical Trip TypeEccentric pin / unbalanced centrifugal plunger in turbine shaft
Typical Trip Setpoint110–112% of rated speed (10–12% overspeed)
Trip Repeatability±2% (mechanical cartridge)
Electronic Trip Response<100 ms (speed relay to solenoid output)
Trip Oil Pressure5–25 bar (low-pressure hydraulic trip header)
Est. Price₹12K – ₹95KIndicative estimate · contact for firm quote
Lead Time2–6 weeks (standard); custom 6–10 weeks

Price & Lead Time shown on every tab

Request Quote via WhatsApp
Also on IndiaMARTCall us

Scoped to this part for a fast reply. For general inquiries, use our Contact page instead.

PDF, DWG, DXF, JPG, PNG — max 10 MB per file. Helps us quote faster.

We respond within 1 business day · No spam · Privacy Policy

Need installation or maintenance?

Our field engineers supply, install, and commission everything we sell.

View engineering services
