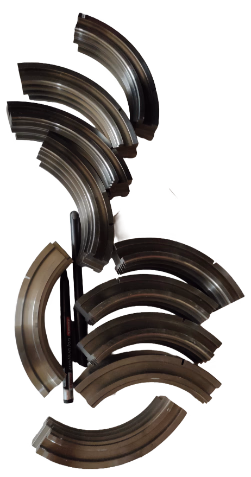

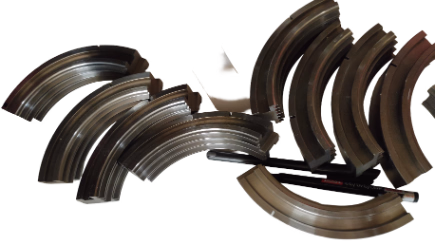

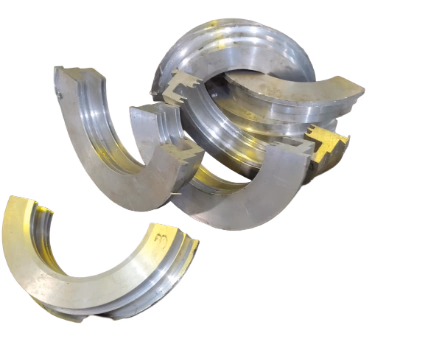

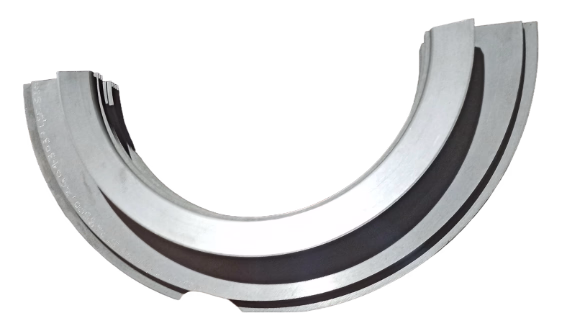

Steam Turbine Labyrinth Shaft Sealing Packings

Indicative Price Range

₹8K–₹65Kper bearing

Labyrinth seal segments; 410SS/Monel/Stellite, spring-back or caulked-in

Get Quote

Prices vary by turbine model, OEM spec, material grade, and order quantity. The range shown reflects our typical market spread — contact us for a firm quotation.

Custom manufactured labyrinth seal segments and packings for steam turbine shaft sealing. High-temperature alloy with erosion-resistant teeth machined to OEM tight-clearance specifications. Typical diametral clearance 0.2–0.6 mm per OEM; spring-back (retractable) seals reduce outage time versus fixed designs. Compatible with Triveni, BHEL, Siemens, Belliss & Morcom, and KKK turbines.

Primary Industrial Application

Steam turbine shaft sealing between rotating and stationary components; prevents steam leakage along shaft at multiple pressure stages.

Diametral Clearance Range0.2–0.6 mm (per OEM specification)
ClearancesPrecision OEM diametral clearance specification
Est. Price₹8K – ₹65KIndicative estimate · contact for firm quote
Lead Time2–6 weeks (standard); custom 6–10 weeks

Price & Lead Time shown on every tab

Request Quote via WhatsApp
Also on IndiaMARTCall us

Scoped to this part for a fast reply. For general inquiries, use our Contact page instead.

PDF, DWG, DXF, JPG, PNG — max 10 MB per file. Helps us quote faster.

We respond within 1 business day · No spam · Privacy Policy

Need installation or maintenance?

Our field engineers supply, install, and commission everything we sell.

View engineering services

You May Also Need

Steam Turbine Carbon & Graphite Gland Sealing Rings

Precision machined carbon and graphite seal rings for steam turbine gland sealing. Self-lubricating material maintains tight clearances at extreme temperatures. Bore size range 25–600 mm; compatible with Triveni, BHEL, Siemens gland sealing systems. Split ring designs available for in-situ fitting without rotor removal.

Application: Steam turbine gland sealing for pressure retention at shaft exits; gas turbine labyrinth shaft sealing.

₹5K – ₹35Kper setconfirmed after review
RFQSpecs

Steam Turbine Babbitt Journal Bearings & Thrust Pads

Precision machined white metal (babbitt) journal and thrust bearings for critical rotating turbine equipment. Ultrasonic bond testing verifies babbitt-to-shell adhesion.

Application: High-speed rotor support in steam turbines, compressors, and gearboxes; thrust load management in turbine thrust bearing housings.

₹12K – ₹95Kper piececonfirmed after review
RFQSpecs

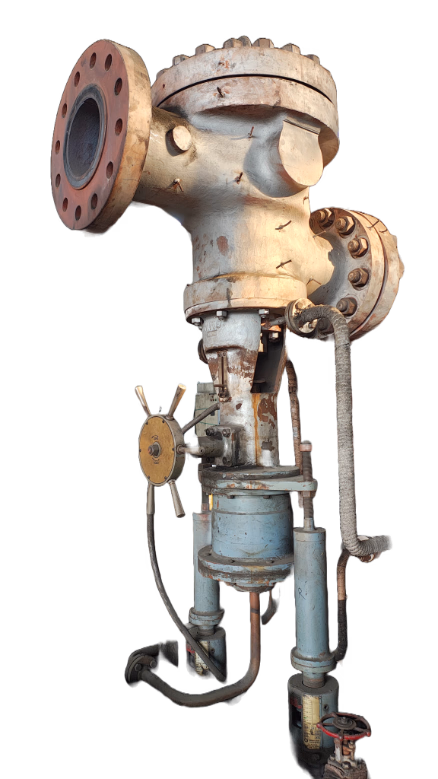

Steam Turbine Emergency Stop Valves (ESV)
