Indicative Price Range
₹300–₹2.8Kper filter
Metallic mesh pre-filter; GI/SS; cleanable & reusable
Prices vary by turbine model, OEM spec, material grade, and order quantity. The range shown reflects our typical market spread — contact us for a firm quotation.

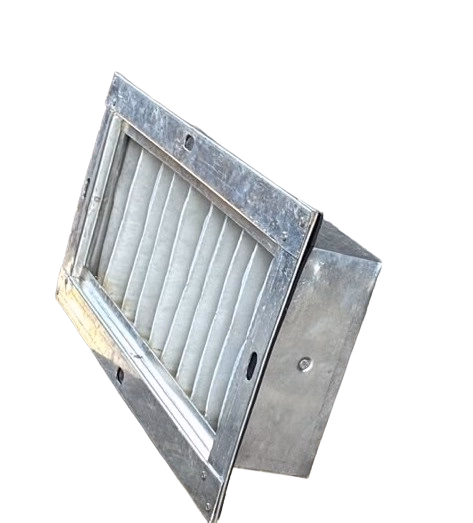

Washable and reusable aluminium or stainless steel metallic mesh pre-filters for HVAC air handling units, split air conditioning systems, industrial ventilation, and fan coil units. Multi-layer corrugated metal mesh captures large airborne particles, fibres, lint, insects, and coarse dust before they reach downstream fine filter stages, protecting bag filters, pleated panels, and cooling coils from premature loading. The robust all-metal construction allows unlimited wash-and-reuse cycles, delivering a low lifetime cost versus disposable media filters.
First-stage coarse pre-filtration in HVAC air handling units, commercial split AC outdoor units, industrial process air intakes, spray booths, compressor air intakes, and fan coil units. Installed at air intake louvres and grilles to block insects, fibres, leaves, and large particles. Protects downstream fine filter elements (pocket bag, pleated panel) and cooling coils from gross contamination: extends service intervals of costly downstream stages. Also used as grease filter above commercial cooking ranges and kitchen exhaust hoods.
| Frame Materials | Aluminium alloy / SS 304 / SS 316 |
|---|---|
| Standard Sizes | 490×490 mm; 490×592 mm; 592×592 mm; 287×592 mm (custom available) |
| Thickness Options | 10 / 12 / 20 / 25 mm |
| Frame Style | Slide-in channel or clip-in tool-free removal |
| Est. Price | ₹300 – ₹2.8KIndicative estimate · contact for firm quote |
| Lead Time | Standard grades: ex-stock to 1 week; custom sizes/special media: 2–4 weeks |
Price & Lead Time shown on every tab
Scoped to this part for a fast reply. For general inquiries, use our Contact page instead.
PDF, DWG, DXF, JPG, PNG — max 10 MB per file. Helps us quote faster.
We respond within 1 business day · No spam · Privacy Policy
Need installation or maintenance?
Our field engineers supply, install, and commission everything we sell.
View engineering servicesPrecision-engineered industrial damper for regulating or controlling airflow, gas flow, and flue gas within industrial duct and HVAC systems. Available in manual and motorized actuator configurations for energy-efficient flow management.
Application: Industrial chimneys, boiler flue gas ducts, HVAC ventilation systems, process air handling units, and industrial exhaust systems requiring controlled airflow regulation.
Custom-fabricated mild steel and stainless steel duct systems for industrial air, gas, and fume conveyance. MS ducts deliver cost-effective strength for standard environments while SS ducts provide superior corrosion resistance for aggressive and hygienic applications.
Application: Industrial ventilation systems, fume extraction, exhaust air handling, chemical plant gas conveyance, food and pharmaceutical manufacturing, and boiler or furnace gas duct connections.
High-efficiency multi-pocket bag filters for HVAC air handling units, central air conditioning, and industrial ventilation systems. The extended pleated pocket geometry maximises filtration surface area in a compact frame, delivering low resistance at rated airflow while achieving superior dust-holding capacity and service life. Available in synthetic, glass fibre, and micro-glass media across efficiency classes F5 to F9 per EN 779 / ISO 16890.
Application: Intermediate and final-stage air filtration in HVAC air handling units (AHUs), central air conditioning plants, clean rooms, hospitals, pharmaceutical facilities, data centres, commercial buildings, food processing areas, and industrial ventilation systems. Installed downstream of coarse pre-filters to capture fine dust, pollen, mould spores, and sub-micron particulates before supply air enters occupied spaces or sensitive equipment.
