Industrial StrainersEx-Stock

SS 304/316 Basket Strainer Replacement Elements

Indicative Price Range

₹800–₹6.5Kper element

Replacement basket elements; SS 304/316; custom mesh

Get Quote

Prices vary by size, pressure rating, material, and mesh. The range shown reflects our typical market spread — contact us for a firm quotation.

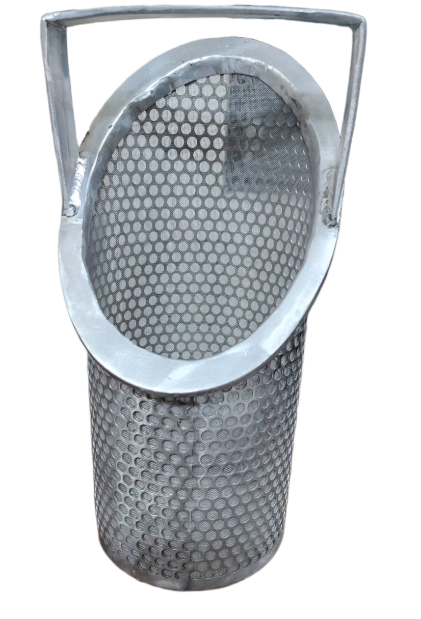

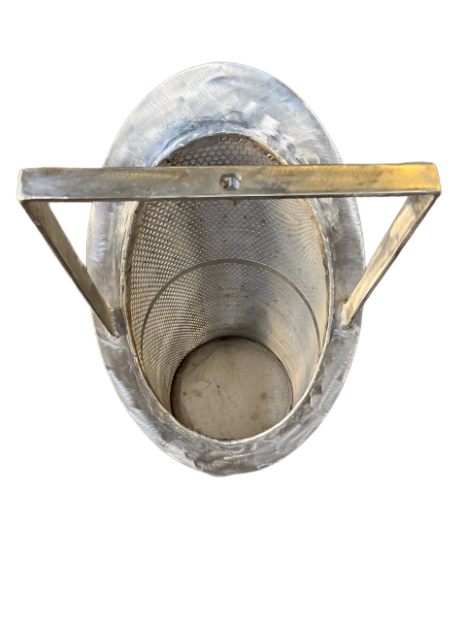

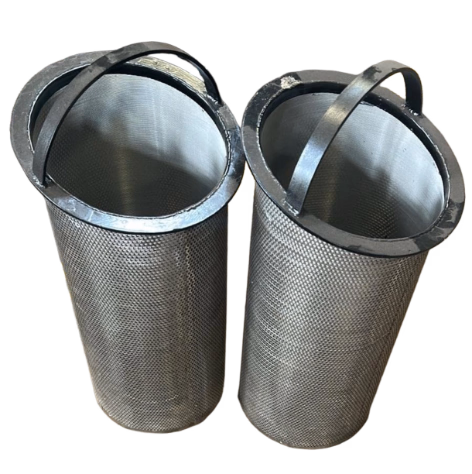

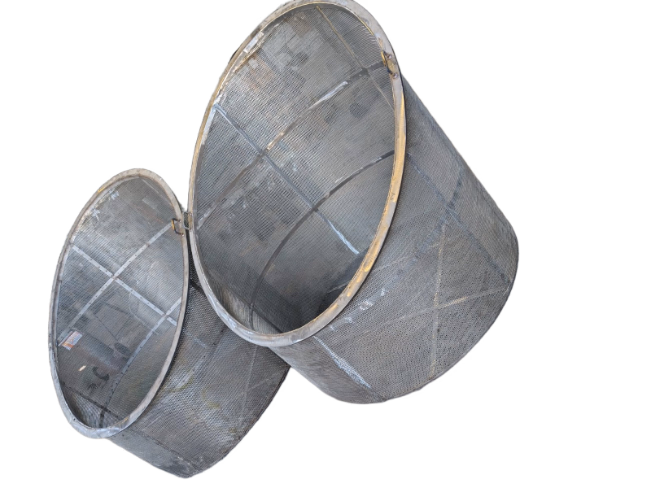

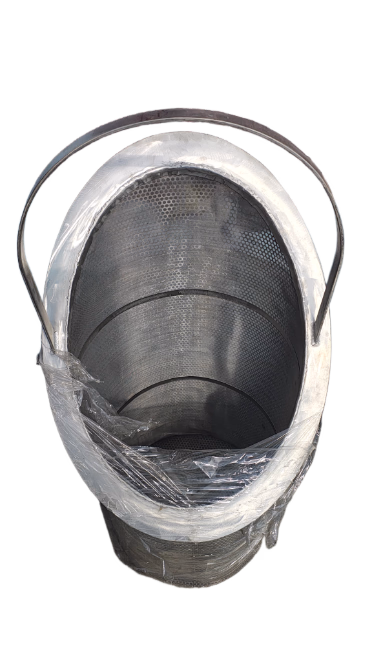

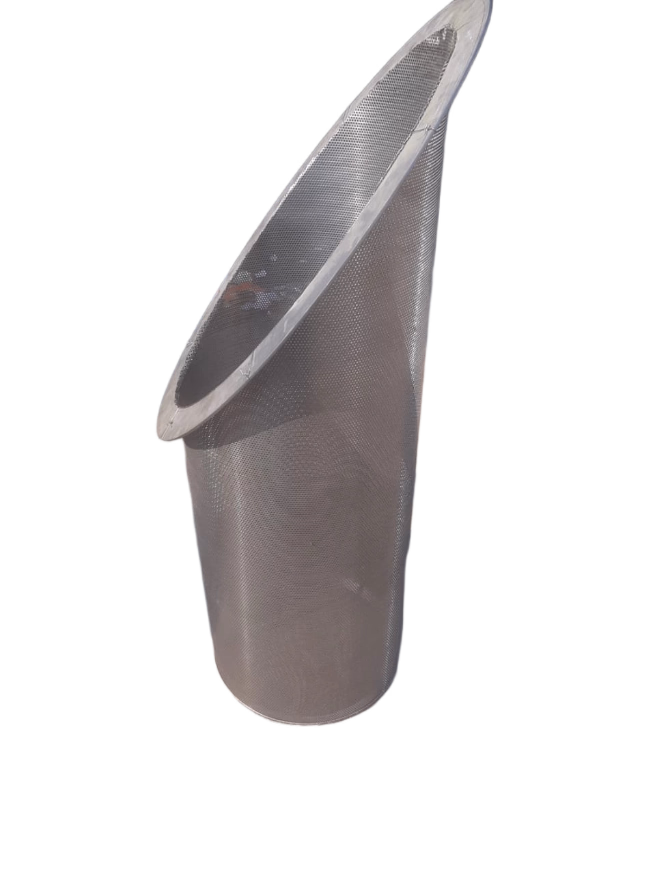

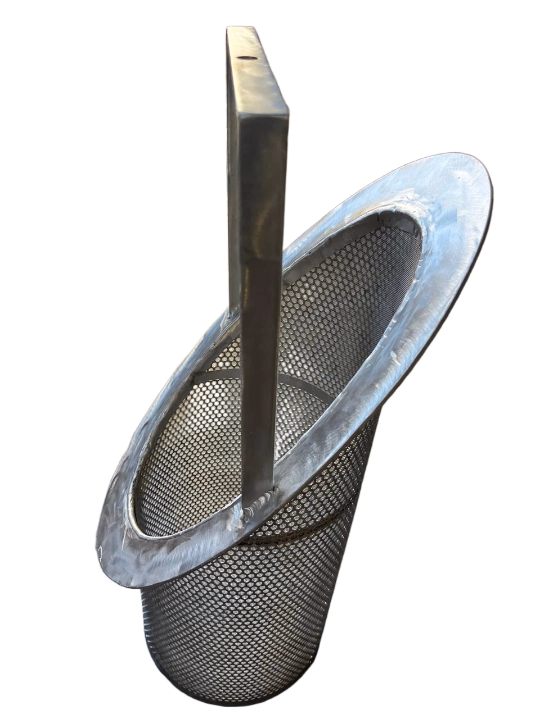

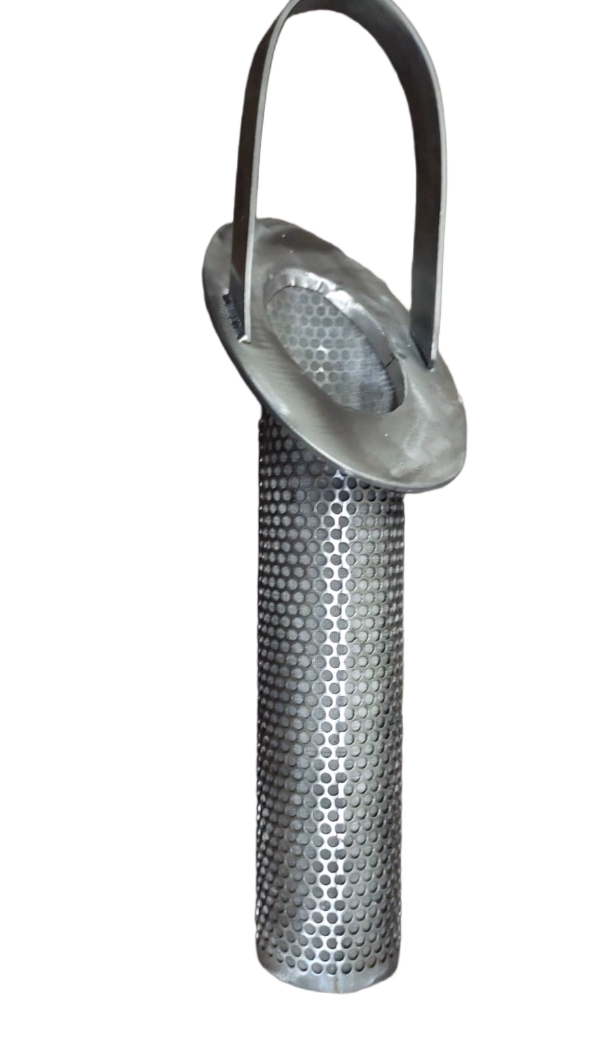

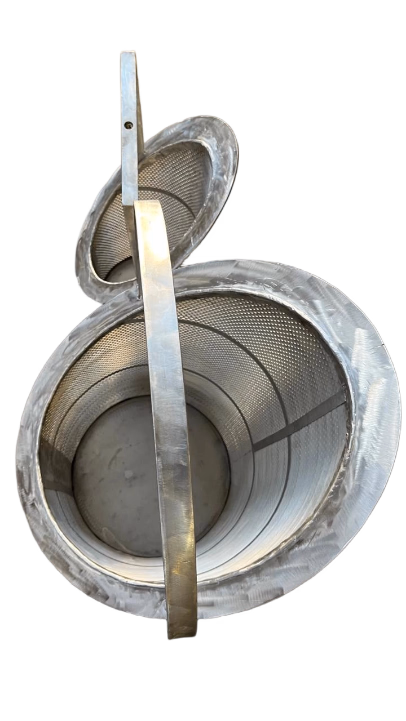

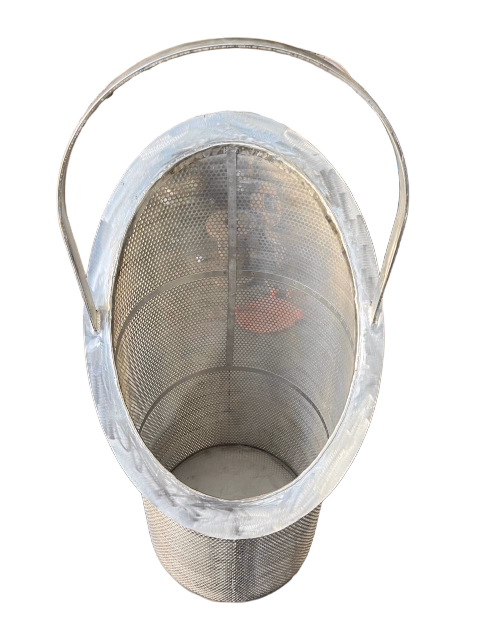

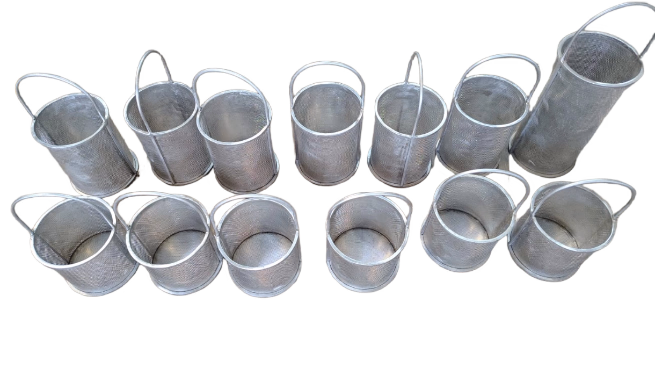

Replacement and custom-fabricated basket strainer elements for simplex and duplex basket strainer housings. Constructed from SS 304/316 perforated plate with optional wire mesh overlay, wedge wire, or all-welded wire mesh construction. Supplied as exact OEM interchangeable replacements or dimensionally matched to any existing housing: including Eaton, Parker, HYDAC, and fabricated units. Mesh / perforation sizes from 37 µm to 6 mm cover light-debris screening through fine-particle retention.

Primary Industrial Application

Direct replacement elements for installed simplex and duplex basket strainer housings across turbine lube oil systems, governor and control oil circuits, process pipelines, fuel oil systems, cooling water lines, and chemical process streams. Supplied to match existing housing ID, element height, and top plate configuration: specify housing make, size, and current mesh for exact interchange. Compatible with Keshav Enterprises-supplied simplex basket strainers and duplex basket strainers, as well as OEM and third-party housings.

Perforation Sizes0.5, 1, 1.5, 2, 3, 4, 6 mm standard
Wire Mesh Grades20 to 400 mesh (standard); custom to 37 µm
Sheet Thickness1–3 mm perforated plate; mesh on 5/32 inch (4 mm) perf. substrate
Top PlateFlat flange, handle-fitted, or closed top: matched to housing
Supply FormatIndividual elements or full-set duplex replacement
Est. Price₹800 – ₹6.5KIndicative estimate · contact for firm quote
Lead Time1–3 weeks (standard); custom 3–6 weeks

Price & Lead Time shown on every tab

Request Quote via WhatsApp

Scoped to this part for a fast reply. For general inquiries, use our Contact page instead.

PDF, DWG, DXF, JPG, PNG — max 10 MB per file. Helps us quote faster.

We respond within 1 business day · No spam · Privacy Policy

Need installation or maintenance?

Our field engineers supply, install, and commission everything we sell.

View engineering services

Technical details we need to quote

  • Equipment make and model, or the part number you currently use
  • A drawing or a clear photo of the part or its nameplate
  • Quantity required
  • Operating pressure and temperature

Send these on the contact form or by WhatsApp.
