Indicative Price Range
₹1.2K–₹12Kper piece
Conical strainer DN15–200; SS wire mesh 40–100 mesh
Prices vary by turbine model, OEM spec, material grade, and order quantity. The range shown reflects our typical market spread — contact us for a firm quotation.

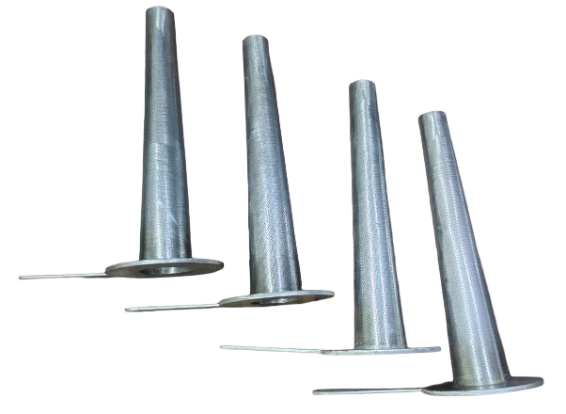

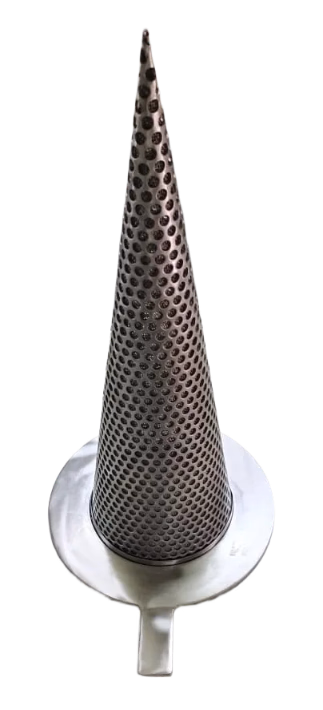

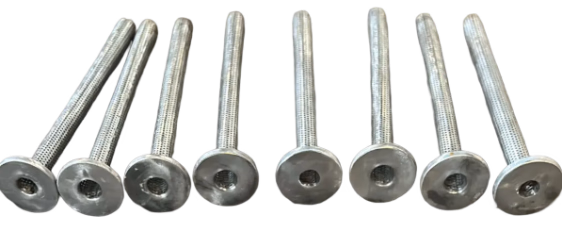

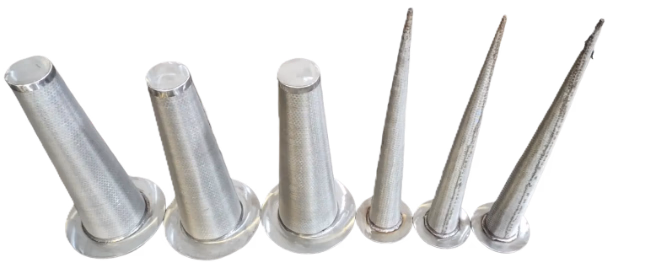

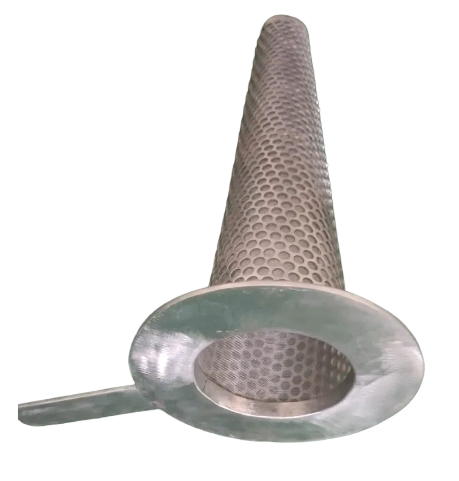

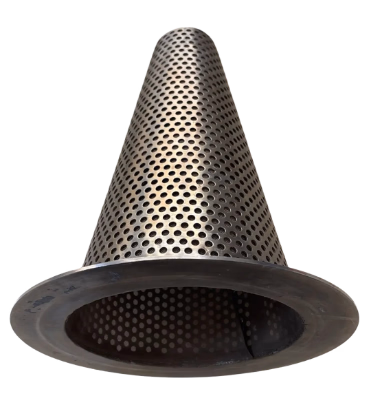

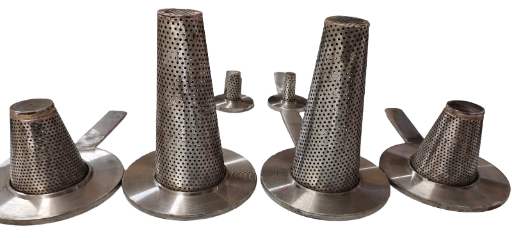

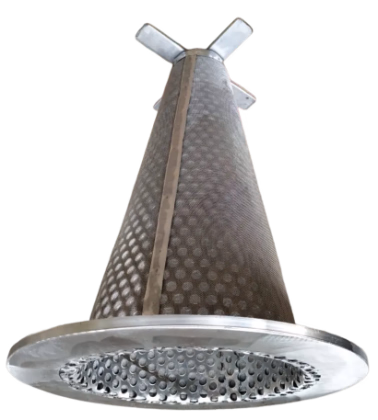

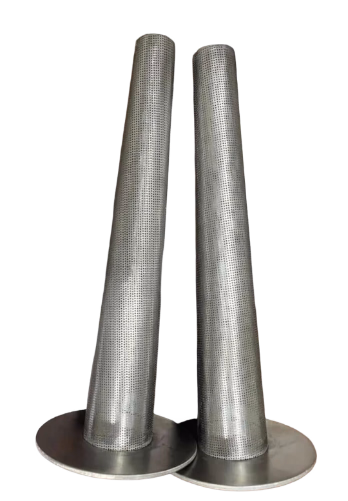

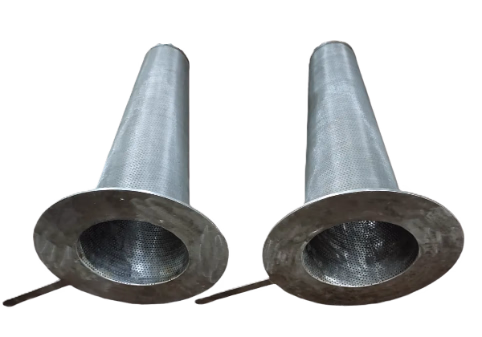

Welded conical strainer installed between standard flanges to remove foreign matter from pipelines. Fabricated from SS 304/316 wire mesh over a perforated core, the conical geometry delivers up to 100% open area in standard sizes: maximising flow capacity at minimal pressure drop. Essential protection during turbine and pump commissioning to capture weld splatter, rust, and construction debris before it damages impellers, seals, and bearings.
Pipeline protection for downstream equipment across commissioning, startup, and continuous service applications. Critical for steam turbine and pump commissioning: installed upstream of turbine steam inlet, pump suction, and compressor suction to capture weld slag, pipe scale, gasket material, and construction debris. Also used as a permanent in-line strainer where the conical geometry suits the available space or pressure-drop budget.
| Size Range | DN 15 to DN 1200 |
|---|---|
| Mesh Range | 0.5, 1, 2, 3, 4, 6 mm standard; 37 µm to ¼ inch (6.35 mm) custom on request |
| End Connections | Flanged, Butt-Weld, Screwed |
| Est. Price | ₹1.2K – ₹12KIndicative estimate · contact for firm quote |
| Lead Time | 1–3 weeks (standard); custom 3–6 weeks |
Price & Lead Time shown on every tab
Scoped to this part for a fast reply. For general inquiries, use our Contact page instead.
PDF, DWG, DXF, JPG, PNG — max 10 MB per file. Helps us quote faster.
We respond within 1 business day · No spam · Privacy Policy
Need installation or maintenance?
Our field engineers supply, install, and commission everything we sell.
View engineering servicesEngineered and fabricated to ASME VIII Div.1 and ASME B31.3 for high-pressure pipeline protection. Low pressure drop at high velocities with SS perforated basket internals. Size range DN 15 to DN 600; mesh/perforation 0.5–6 mm standard.
Application: Liquid, viscous, and gaseous media filtration in high-pressure pipelines; protects valves, meters, and process equipment.
Continuous-service duplex strainer enabling basket cleaning without process shutdown. Three-way changeover valve diverts flow while dirty basket is serviced.
Application: Continuous flow systems requiring zero-downtime operation; critical process lines where shutdown is unacceptable.
Cast and welded Y-type strainer for liquid and gaseous pipelines. Y-configuration allows easy blow-off cleanout without line shutdown. Size range DN 15 to DN 400; mesh 0.5–3 mm; temperature rating up to 400°C for steam service.
Application: General pipeline protection; steam, water, gas, oil, and chemical service lines protecting downstream equipment.
