Indicative Price Range
₹800–₹8.5Kper assembly
PTFE-lined SS hose; chemical resistance grade
Prices vary by turbine model, OEM spec, material grade, and order quantity. The range shown reflects our typical market spread — contact us for a firm quotation.

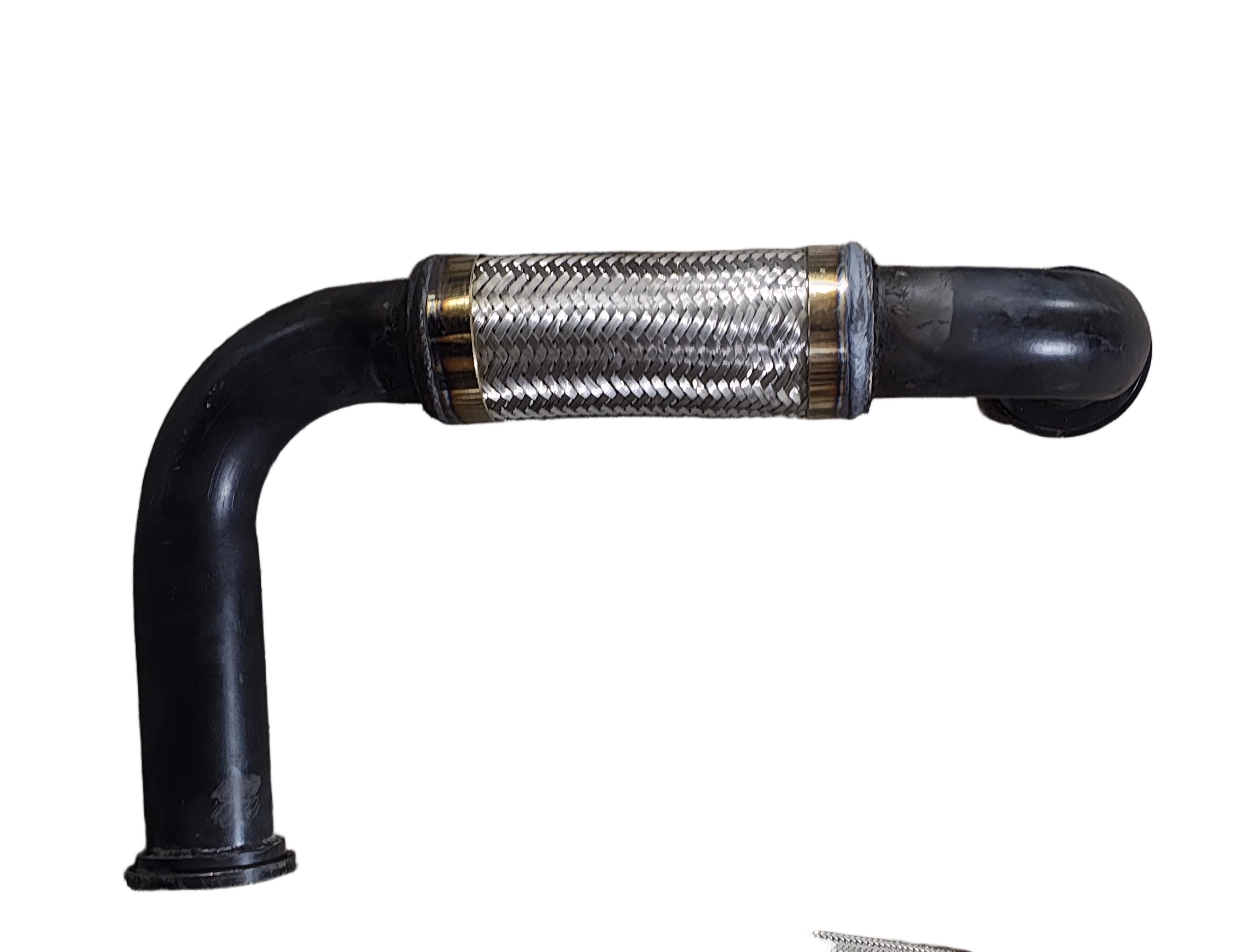

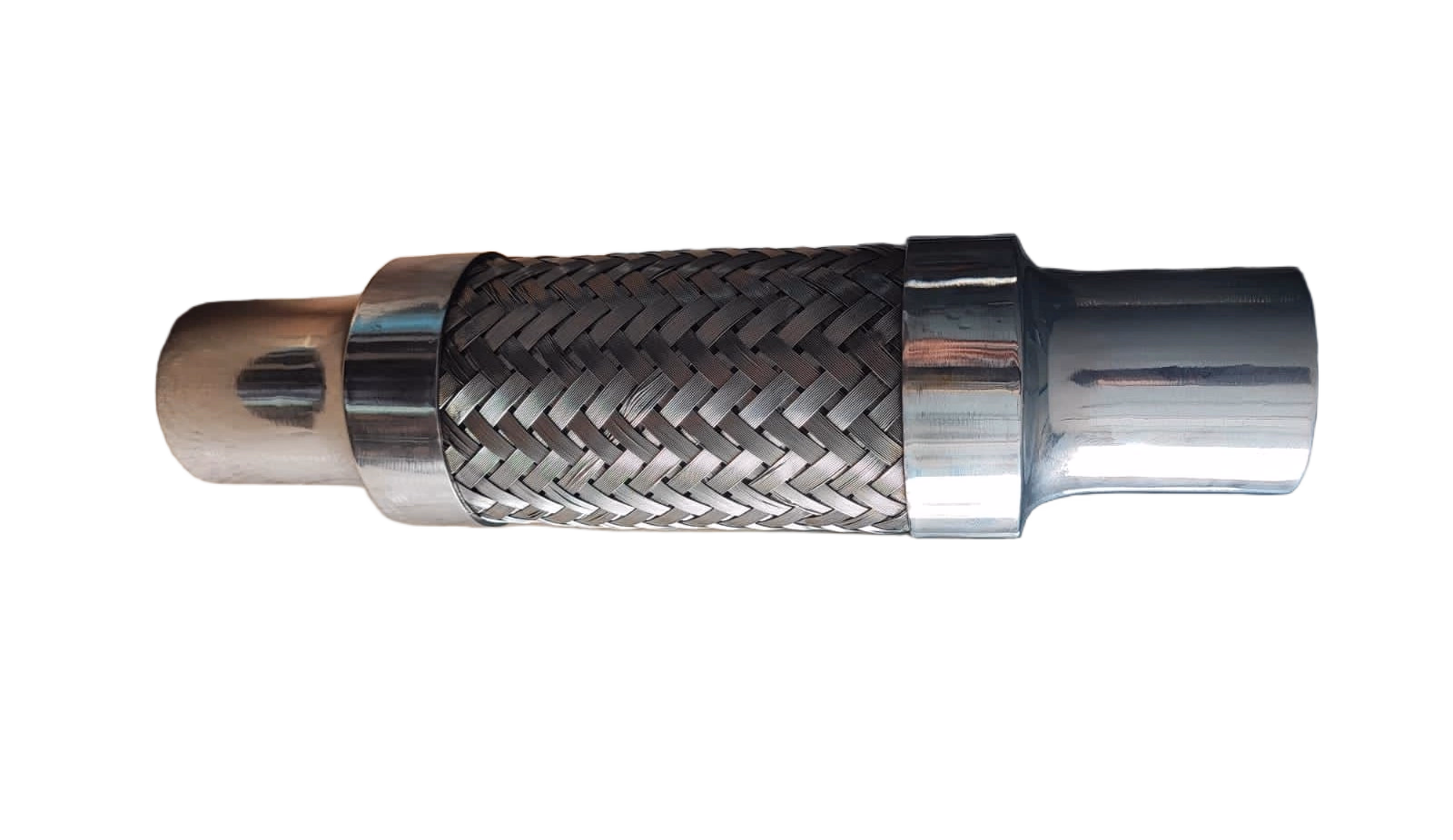

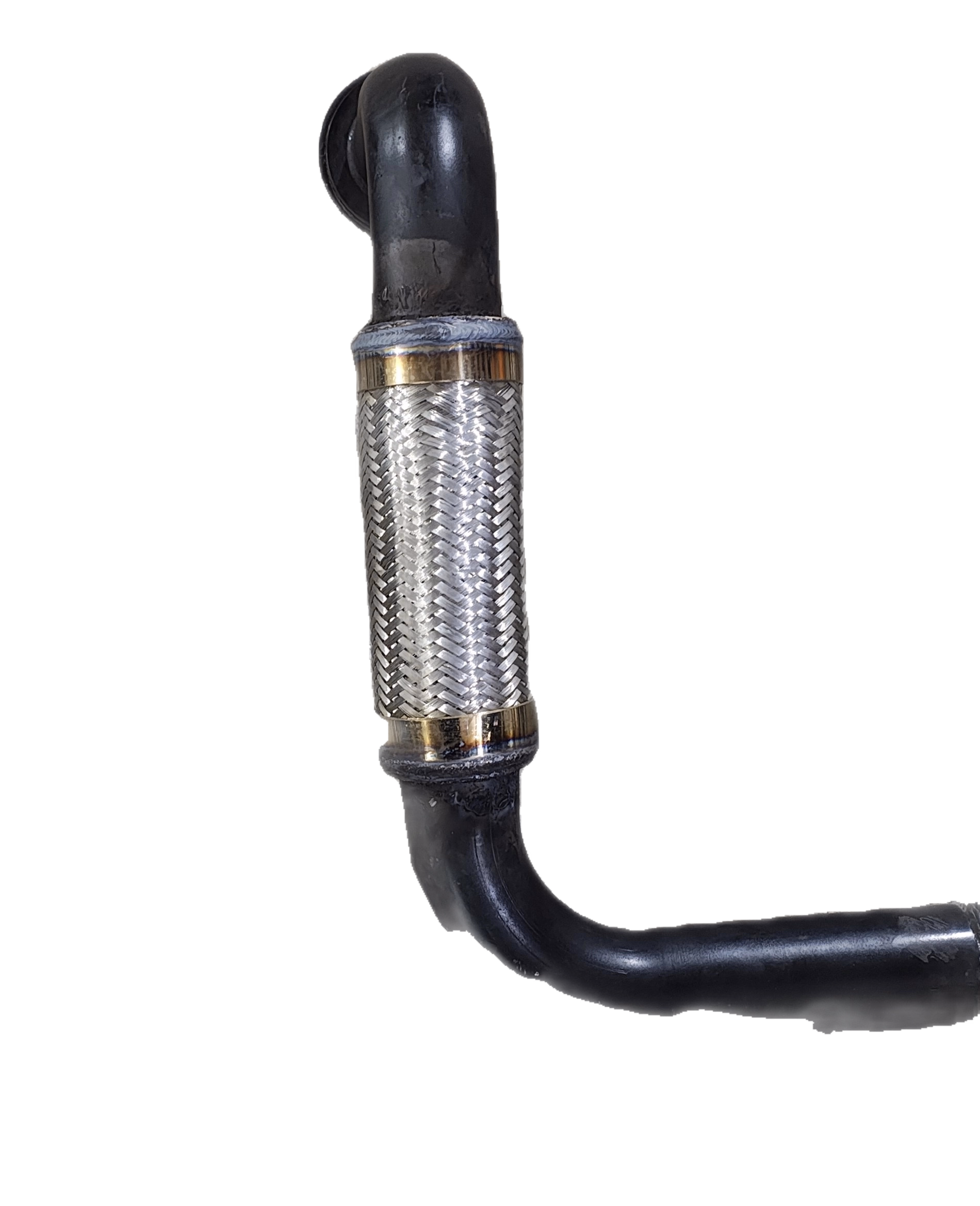

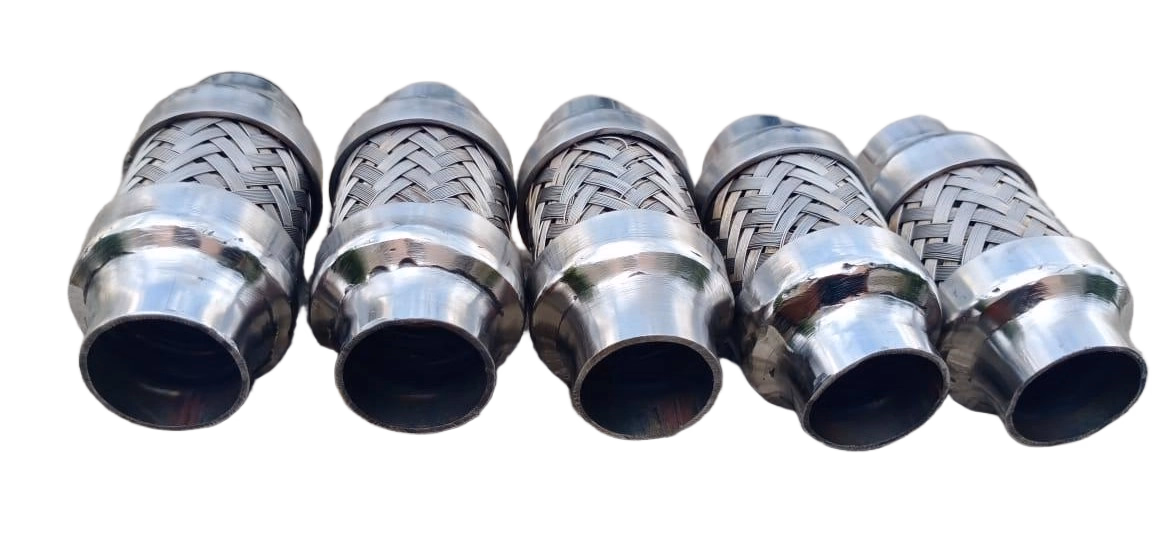

Specialised single-bellow expansion joints for generator exhaust connections, diesel engine exhaust ducting, and industrial engine compartments. SS 316L construction rated to +600°C peak exhaust gas temperature. Size range DN 50 to DN 600 (round) and custom rectangular; interlock liner protects bellows from high-velocity exhaust turbulence. Absorbs axial compression up to 30 mm and lateral offset up to 15 mm.
Diesel generator exhaust connections, gas engine exhaust systems, industrial engine compartments, and automotive exhaust ducting. Essential wherever exhaust backpressure loads, vibration, or thermal expansion must be isolated from the engine block, turbocharger, or silencer.
| Temperature Range | Continuous to +500°C; peak to +600°C |
|---|---|
| Size Range | DN 50 to DN 600 (round); rectangular custom |
| Axial Movement | Up to 30 mm compression / extension |
| Lateral Movement | Up to 15 mm offset |
| End Connections | Flanged (ANSI/DIN standard drilling) |
| Est. Price | ₹800 – ₹8.5KIndicative estimate · contact for firm quote |
| Lead Time | Standard lengths: ex-stock to 1 week; custom length/end fittings: 1–3 weeks |
Price & Lead Time shown on every tab
Scoped to this part for a fast reply. For general inquiries, use our Contact page instead.
PDF, DWG, DXF, JPG, PNG — max 10 MB per file. Helps us quote faster.
We respond within 1 business day · No spam · Privacy Policy
Need installation or maintenance?
Our field engineers supply, install, and commission everything we sell.
View engineering servicesStainless steel corrugated hose with braided outer sheath for high-temperature, high-pressure, and chemically aggressive fluid transfer. Absorbs thermal expansion, vibration, and misalignment.
Application: High-temperature steam lines, chemical transfer, vibration absorption at pump/compressor connections, cryogenic lines.
Complete stainless steel hose assemblies with pre-fitted and tested end fittings for immediate installation. Combines SS corrugated hose flexibility with leak-proof sealed end connections: ready to bolt on.
Application: Critical fluid transfer in refineries, chemical processing, steam systems, hydraulic lines, food processing, and pharmaceutical plants where assembled and tested hoses are required.
Smooth bore PTFE-lined hose with stainless steel outer braid. Non-stick inner surface prevents product contamination. Maximum chemical resistance for aggressive chemicals and high-purity applications.
Application: Pharmaceutical fluid transfer, aggressive acids/alkalis, solvents, semiconductor chemicals, food-grade process lines.
